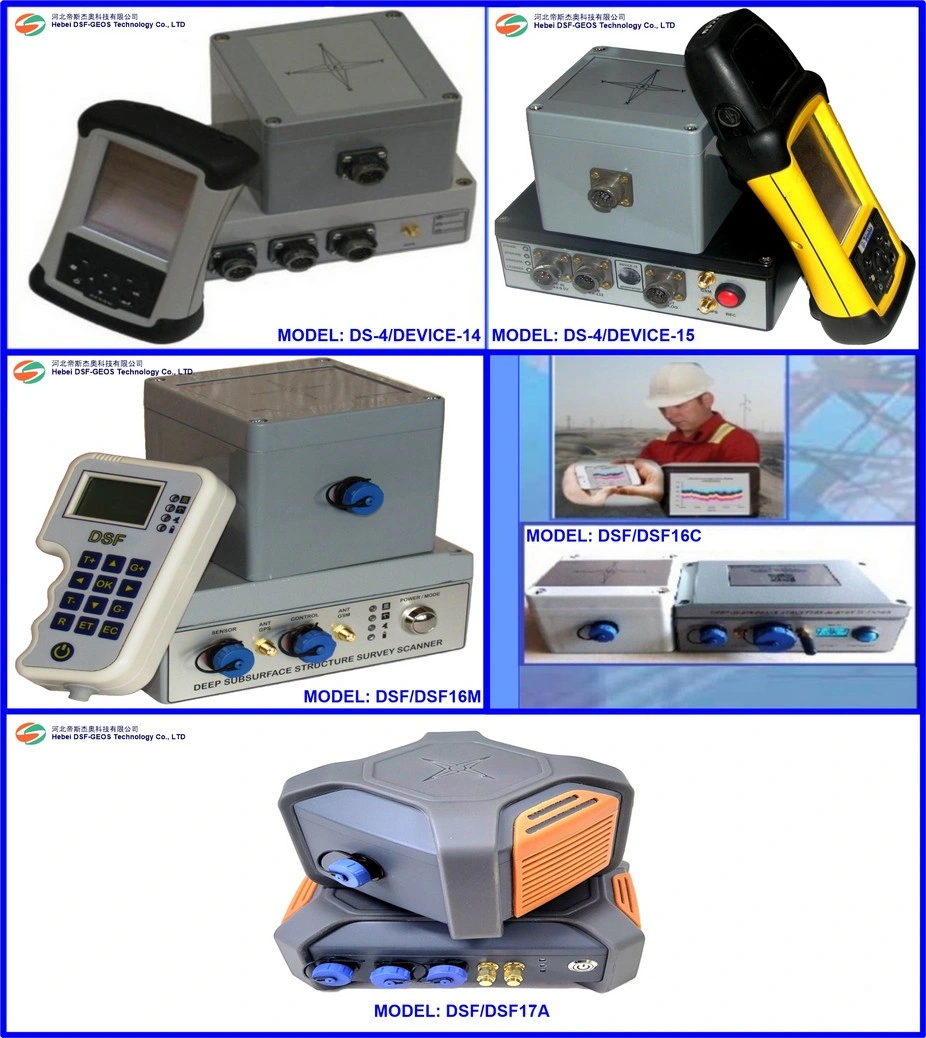

| SCANNER DSF |
| DEEP SUBSURFACE STRUCTURE SURVEY SCANNER "DSF" | ||
 | ||
TECHNICAL SPECIFICATIONS | ||
Parameter | Designation | |
1 Hardware parameters | ||
1.1 Frequency range | from 1 to 100kHz | |
| 1.2 The sensitivity given to the antenna input of the complex | is not more than 1*10-6 A/m | |
1.3 The time of continuous recording into the internal memory of the complex at a measurement frequency of 25 Hz | 10h | |
1.4 Continuous operation time from a fully charged battery | 20h | |
2 Degree of protection of enclosures: | IP65 | |
3 Temperature range: - operating and short-term temperature - long-term storage temperature | от -30°С до +60° С от -40°С до +70° С | |
4 Weight, kg, no more: - signal processing unit - receiving antenna unit | 1.5kg 0.5kg | |
5 Overall dimensions, mm: - signal processing unit - receiving antenna unit | 160 х 100 х 65 100 х 100 х 70 | |
